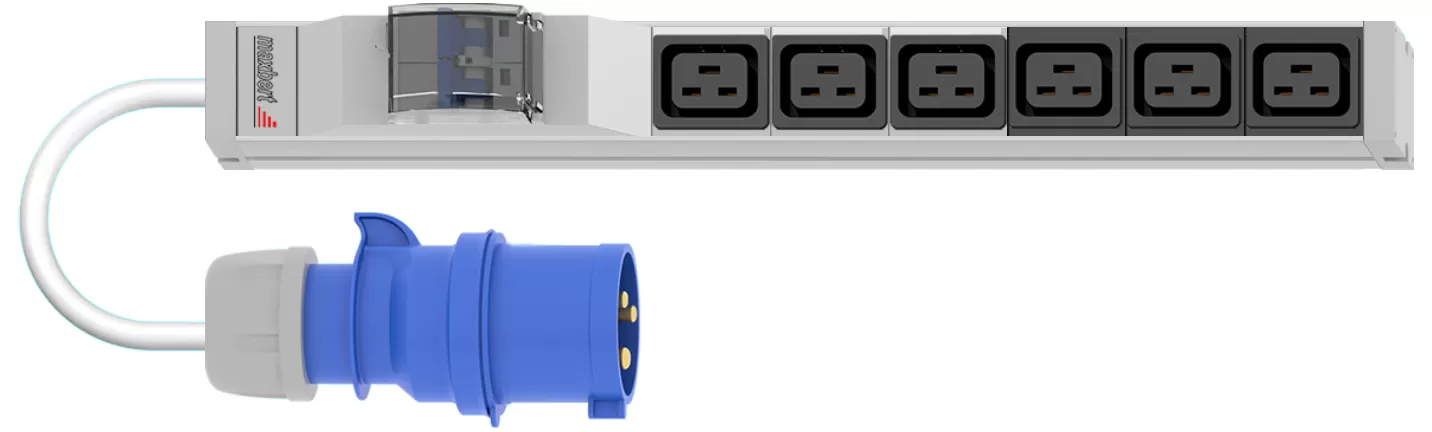

BCC Solutions 19" PDU 6x C19 3m kaapeliIEC60309 liittimellä
Tuotekoodi: MXL477N335
19" PDU 6x C19 IEC60309 liittimellä
Tuotetta on varastossa: 0 kpl
Mikäli tuotteella ei ole näkyvissä hintaa, pyydä tarjous.
Server Rack PDU
6 x IEC320C19 sockets outlet max. 16A/230VAC
Sockets are located in 2 blocks. Each block is protected by circuit breaker for overload and short circuit. MCB tripping characteristic - type C, 16A, 1-pole.
Plastic elements colour: light-grey similar to RAL7035
Natural anodized aluminium body.
Dimensions without mounting brackets (WxHxD): 44x431x90mm
Vertical or horizontal mounting in 19" rack - 1U
Mounting brackets for installation in 4 orientations
5-meter supply cable H05VV-F.3G4mm² in white colour.
Supply cable terminated IEC60309 plug blue 1-phase (32A/230V).
Maximum current 32A (7360 W).
Protection level IP20.
Declaration of Conformity CE.
6 x IEC320C19 sockets outlet max. 16A/230VAC
Sockets are located in 2 blocks. Each block is protected by circuit breaker for overload and short circuit. MCB tripping characteristic - type C, 16A, 1-pole.
Plastic elements colour: light-grey similar to RAL7035
Natural anodized aluminium body.
Dimensions without mounting brackets (WxHxD): 44x431x90mm
Vertical or horizontal mounting in 19" rack - 1U
Mounting brackets for installation in 4 orientations
5-meter supply cable H05VV-F.3G4mm² in white colour.
Supply cable terminated IEC60309 plug blue 1-phase (32A/230V).
Maximum current 32A (7360 W).
Protection level IP20.
Declaration of Conformity CE.
- Tuotekoodi: MXL477N335
